GRD SERIES CNC MACHINE

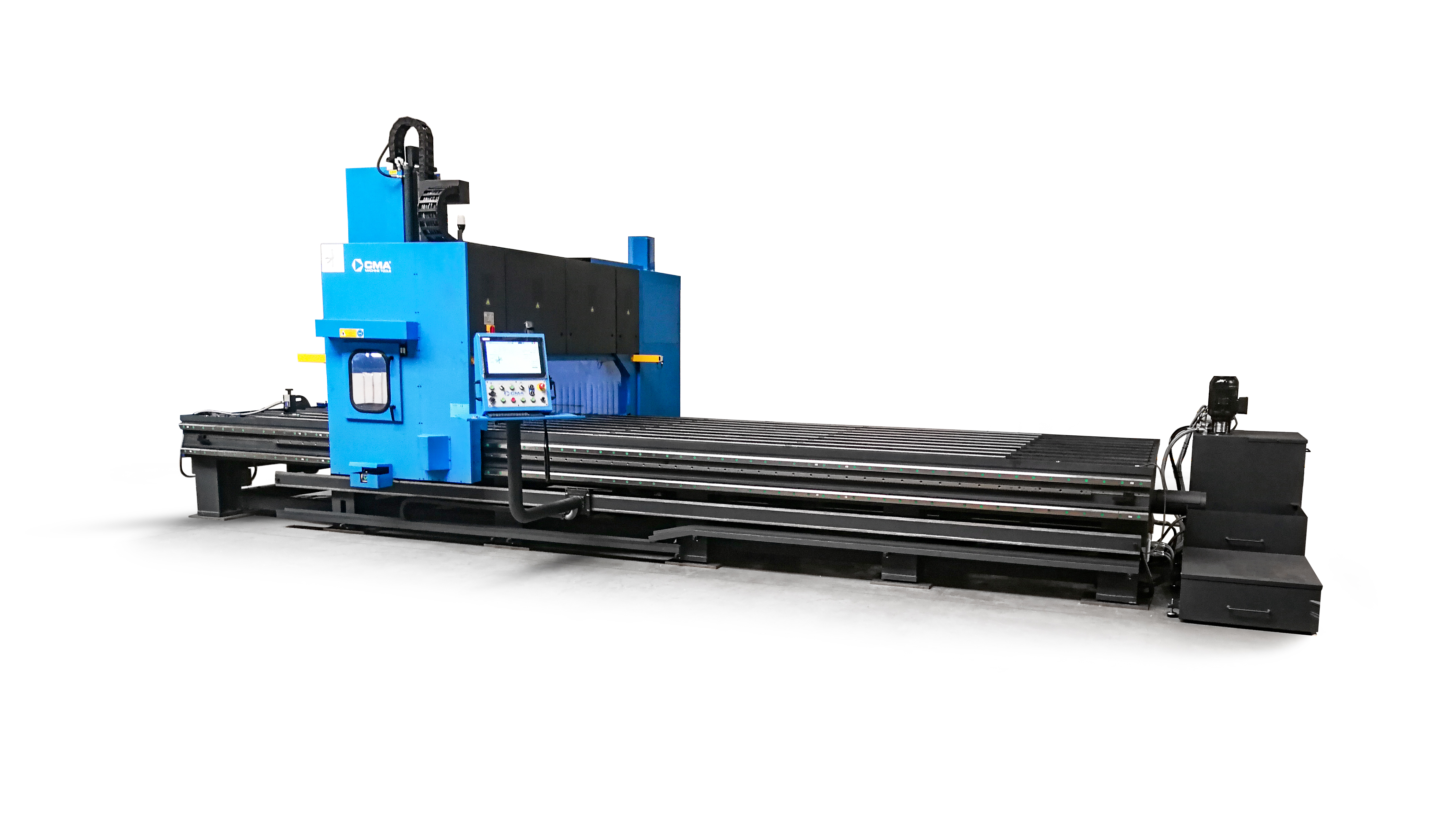

The CMA GRD Series CNC controlled gantry machine comes in a range of standard sizes but can be manufactured to your requirements. The GRD can be fitted with an 13.1KW or 30.1 KW machining spindle which is perfect for many operations such as rapid drilling, heavy milling, thermal drilling, tapping up to M45 holes, thread milling and slot drilling. The Machine features a mono-block, welded steel frame with high rigidity and a t-slot machine bed. Moving along precision ground liner rails on all 3 axes, CMA ensure consistent high tolerance machining over the length of the machine bed. All moving parts are self-lubricating to reduce machine downtime and the machine spindle is driven by a programmable servo-motor.

Mono-block, welded steel frame with high rigidity.
Modular table in cast iron with T-slots.
24″ color touch screen control.
Machine moves along linear guideways on all axes.
Self-lubricating moving parts along all axes.
Spindle driven by a programmable servo-motor.
CAT40/50—Automatic tool changer for up to 24 tools.
Electric panel with cooling system.
External coolant systems, pump and tank.
Chip conveyor.
Water protection screen.
Automatic tool calibrator.
RJ45 fast connection mounted on the frame.

Control

Conversational & ISO (G-code) Programming.
OMRON color touch screen control.
Memory up to 999 programs.
50 programmable zero-points.
3 axes controlled (X,Y,Z ).
Z axis can be programmed at different speeds along column.
Helical Milling.
Load programs with USB.

Optional Equipment

Spindle motor	13,1 kW / 30.1 kW
Spindle type	BT 40 / CAT 40 / BT 50 / CAT 50
Length of table	3000 / 4500 / 6000 / 7500 / 9000 mm or customised
Width of table	1400 / 1800 / 2000 / 2500 / 3000 mm or customised
T-slots	6 / 10 / 11 / 13 - 20 mm – distance 250 mm
Stroke X-axis	3000 / 4500 / 6000 / 7500 / 9000mm or customised
Stroke Y-axis	1400 / 1800 / 2000 / 2500 / 3000 mm or customised
Stroke Z-axis	500 mm
Distance spindle-table	120-620 mm
Table Height	880 mm
Speed X-axis	30 m/min
Speed Y-axis	Upto stroke 2000 mm: 30 m/min, stroke > 2000 mm: 20 m/min
Speed Z-axis	4,8m/min
