Optional Equipment

Coolant Through Spindle/Tool

- Option 1: Pressure 4 Bars.
- Option 2: Pressure 7 bars.

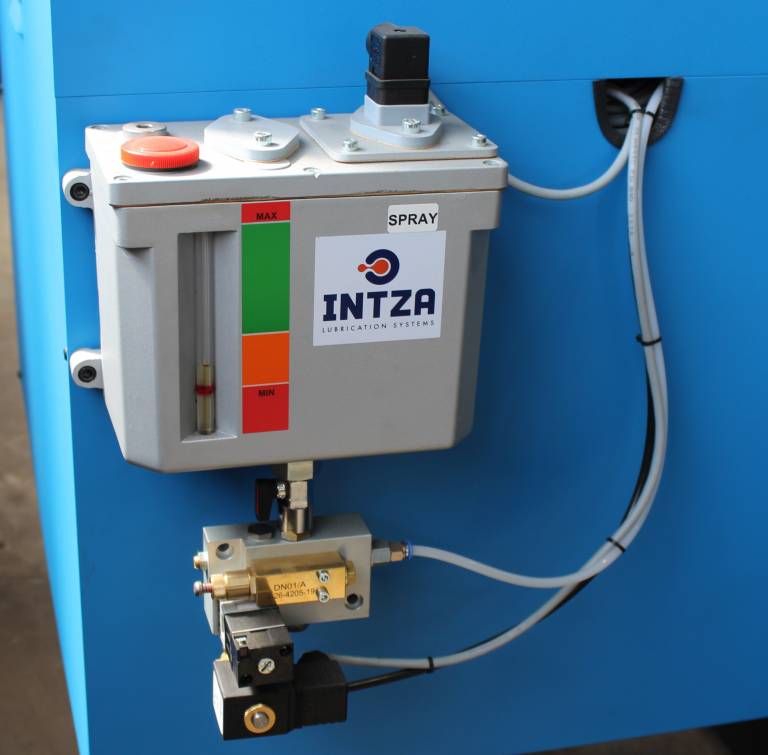

Spraying System (minimum lubrication system with air+oil)

- For drilling/milling in profiles up to approximately 6 mm wall-thickness.
- Spraying-time and interval programmable in the CNC-control.

Paste-Shot System for Flowdrilling Or Oil-Shot System for Threadforming

- Spraying-time and interval programmable by CNC-control.

Z Reader - Automatic System For Measuring the Height of a Work Piece

- 100% accurate flowdrilling and countersinking.
- Tolerances in height of material and/or clamping systems are automatically compensated.
- Avoids crash of tool in case of eventual programming-mistakes. Max. allowed tolerance can be set in the parameters.

In case the height of the product is out of tolerance the program will be interrupted and an error-message appears.
- Maximum tool-length 315 mm.

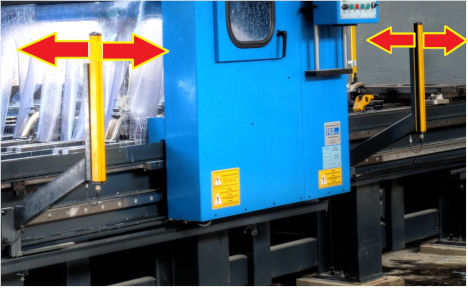

Rear Movable Lightcurtain

- Possibility to enter the rear side of the machine for manual clamping when working in 2 stations.
- No requirement for fencing around machine.

GRD Models only

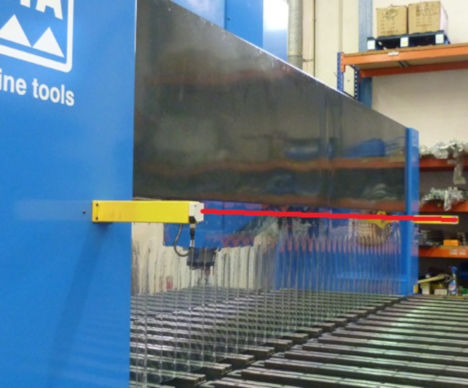

Lightcurtain in Y-direction

- Safety measure to protect operators climbing on the table for clamping parts on wider machines.
- Positioned 500mm above table bed.

GRD Models only

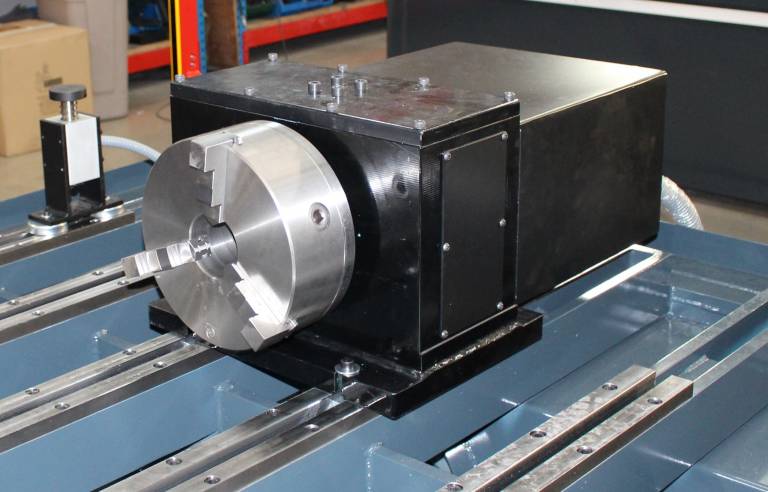

4th Axis Driver

- CNC Controlled.
- Includes self-centering 3-jaw chuck.
- The rotary table is mounted on table with linear guides for fast set-up.
- Option 1: Max Diameter 250 mm.
- Option 2: Max Diameter 400 mm.

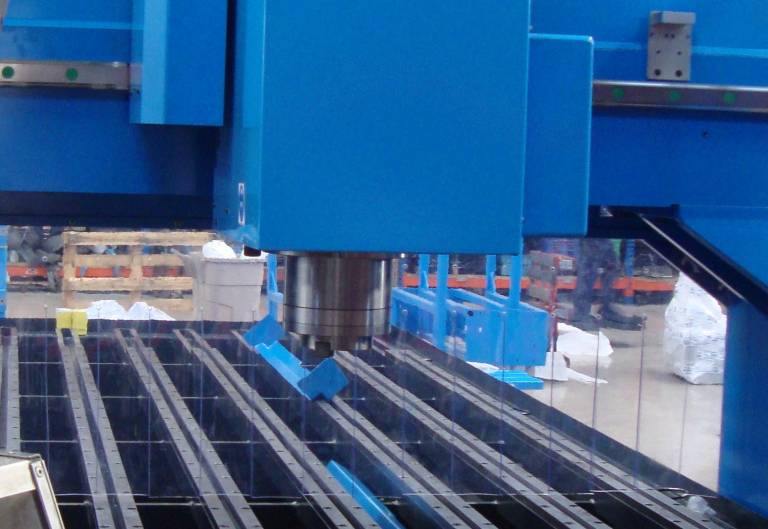

BT 50 Spindle

- BT 50 automatic rotary toolchanger for 10 tools included.
- Toolchanger built directly into machine head.

Ref: Distance spindle-table 80-580 mm

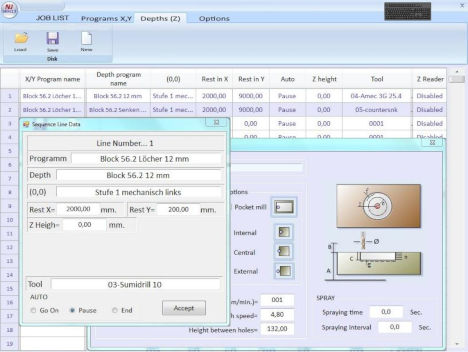

DrillWin NJ13 External Software

- Write programs on external PC.
- Coordinate-programs.
- Depth-programs (drilling-cycles).
- Sequences.
- Programs can be saved on and loaded from the external PC through the Ethernet connection or USB-stick.
- The software is delivered with 2 licenses.

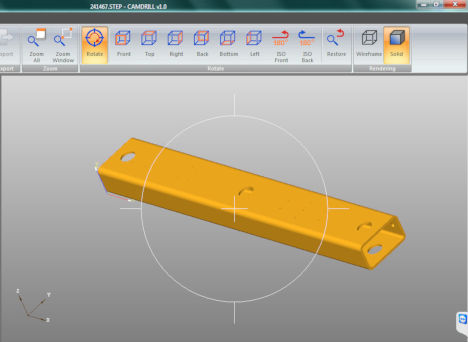

DrillCam Programme Software

- Complete CAD-CAM software for converting 2D DXF, DWG, DSTV or 3D STEP, IGES files into ISO machine-programs.
- Loading of programs into the control of the machine through Ethernet connection or USB.
- RPM and feed of tools are automatically set based on programmable library for different types of tools and materials.
